Item # VENTURA320CS
UPC # 50822383507106

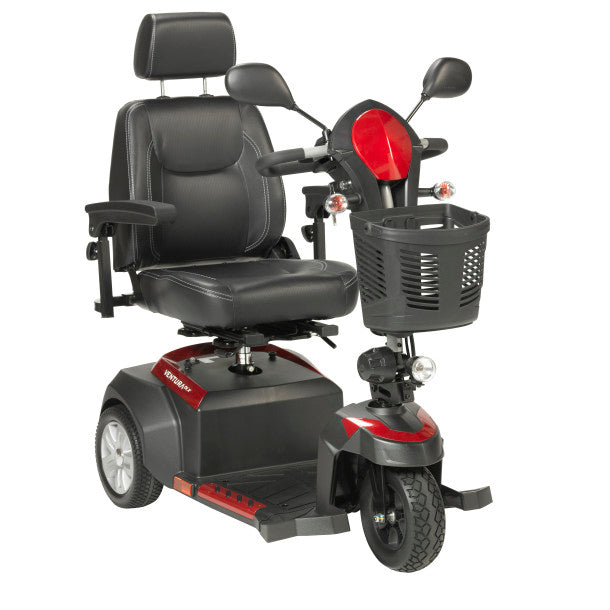

The Ventura 3 Wheel Scooter by Drive Medical comes with a Captain's Seat for superior comfort.
- Easily disassembles for transport
- 400 lbs. Weight Capacity
- Includes interchangeable color panels in Red and Blue (Figure A)
- 33 AH batteries for extended range
- Floorboard with 23" of foot space
- Ergonomic throttle control
- Height-adjustable swivel seat features fold-down backrest and adjustable padded armrests
- Seat position can be adjusted forward or backward
- Rear suspension and Anti-tip wheels
- Programmable controller
- Seat back reclines and features adjustable headrest
- Flat-free, non-marking tires
- Large, plastic carry basket
- Easy-to-adjust Delta tiller
- Headlight, Turn signals/hazard lights and Rearview mirrors
- Easy free wheel operation
SPECIFICATION
Warranty 24 Month Limited Warranty on Electronics
Product Weight 187 lb
Product Dimensions 48" (L) x 25" (W) x 45" (H)
Seat Dimensions 18" (D) x 20" (W)
Weight Capacity 400 lb
Brakes Electromagnetic
Top Speed 6 mph
Batteries (pair) 12V x 33AH
Battery Charger 4A Offboard
Battery Weight (pair) 46 lbs.
Charger 4A Offboard
Climbing Angle 7.5°
Color Red & Blue
Controller PG 70A
Dimensions 48‰Û (L) x 25‰Û (W)
Ground Clearance 2.5"
HCPCS N/A
Heaviest Piece Weight 60 lbs.
Maximum Range 16 miles
Motor 24V x 350W x 5100 RPM
Seat Type Captain - Reclining High
Turning Radius 54"
Warranty on Batteries 12 Month Warranty on Batteries
Warranty on Frame Limited Lifetime Warranty on Frame
Wheel Size Front: 10" x 3" | Rear: 10" x 3"
